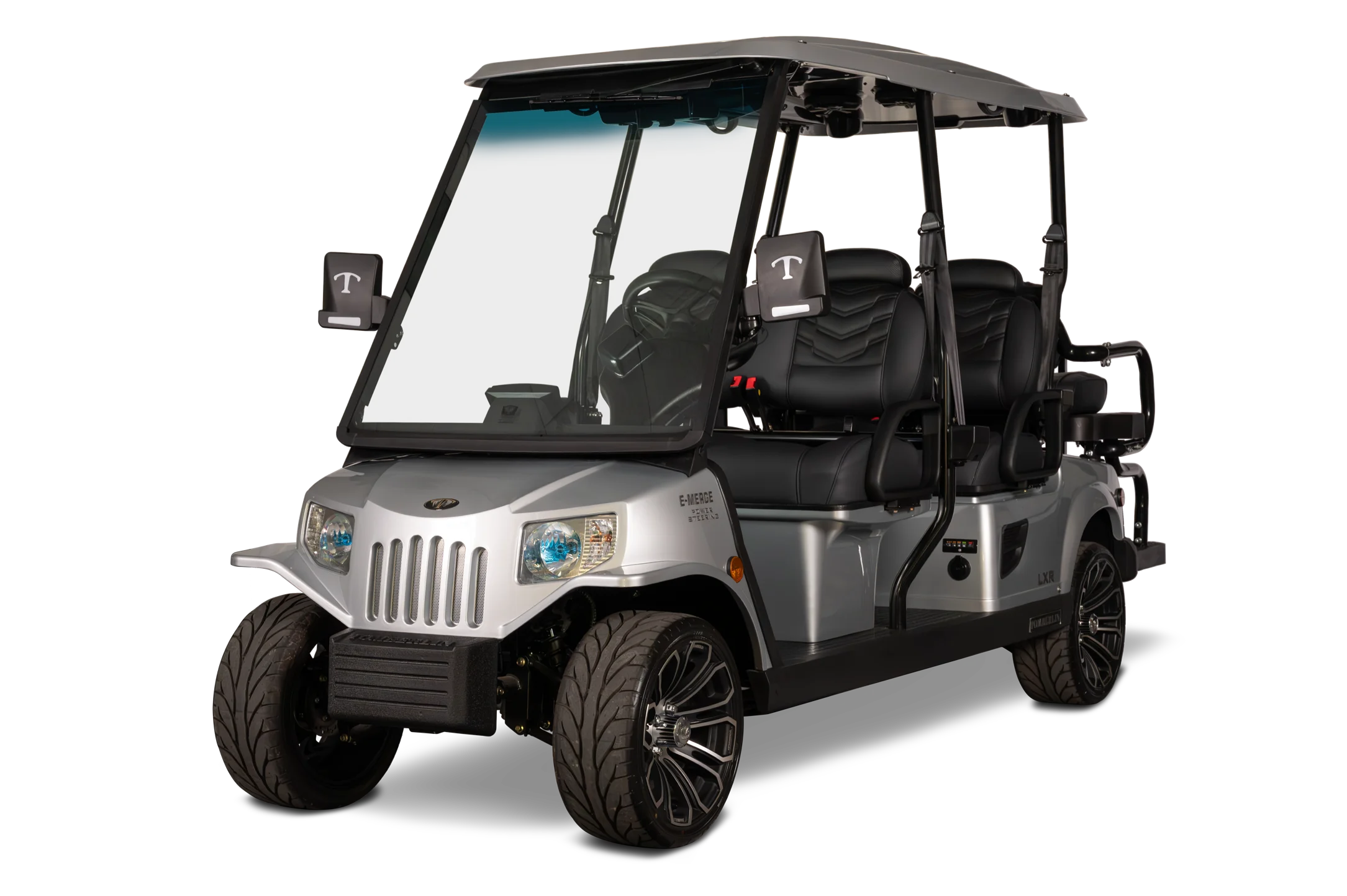

TOMBERLIN LXR

The Tomberlin E-Merge LXR low-speed vehicle (LSV) represents the absolute pinnacle of TomberlinÒ€ℒs luxury personal transportation lineup, meticulously engineered as an ultra-premium, street-legal cruiser that delivers an uncompromising automotive-grade experience. Available in both 4 and 6-passenger configurations, the LXR trim elevates the standard E-Merge platform by integrating high-end styling elements, customized aesthetic treatments, and superior interior comforts. It is specifically crafted for individuals who demand a bold, head-turning presence, providing an unparalleled combination of street-legal safety, responsive power, and a highly refined ride through master-planned resort communities, golf clubs, and suburban public roadways.

The foundation of the E-Merge LXR is built on a high-strength, e-coated and painted tubular steel chassis engineered for absolute structural rigidity and lifelong corrosion resistance. This robust framework features Tomberlin's signature independent dual A-arm front suspension paired with premium, adjustable coil-over shocks and an industry-first standard electric power steering (EPS) assembly for effortless low-speed maneuvering. Safety remains paramount to its core engineering, utilizing standard 4-wheel hydraulic brakes (front discs and rear drums), a DOT-approved AS1 laminated safety glass windshield with a dedicated wiper assembly, 3-point seatbelts for all occupants, and a high-mount third brake light integrated directly into the canopy structure.

Propelled by a high-efficiency, brushless AC induction motor that cranks out a muscular 17-horsepower peak, the E-Merge LXR offers seamless, linear acceleration managed by an advanced 450-amp Sevcon AC speed controller. The vehicle can be equipped with heavy-duty lead-acid configurations or optimized with Tomberlin's elite EVOLVE smart lithium-ion battery packages, which completely eliminate cell watering maintenance while drastically shedding curb weight for an incredibly agile throttle response. Complete with custom-painted matching wheels, an automatic Smart ParkΓ’β€žΒ’ electromagnetic parking brake, and an immersive 7-inch color digital dashboard console featuring an integrated backup camera, the LXR stands as the definitive luxury benchmark for neighborhood transit.

Click main image to enlarge and browse the gallery.
Make:
Tomberlin
Model Line:
E-Merge LXR
Vehicle Classification:
Low-Speed Vehicle (LSV) / Street-Legal PTV
Seating Capacity:
Available in Premium 4 or 6-Passenger Layouts
Power Type:
48V AC Electric (Lead-Acid or Lithium Drivetrain)
Motor Type:
5 kW (17 hp Peak) High-Performance Brushless AC Motor
Drivetrain Controller:
450-Amp Sevcon AC Solid-State Precision Controller
On-Board Charger:
1050W (1 kW) Integrated Smart Charger
Maximum Forward Speed:
25 mph (LSV Mode) / 19 mph (PTV Mode)
Chassis Frame Type:
E-Coated & Painted Heavy-Duty Tubular Steel Frame
Body & Roof Construction:
High-Impact Injection-Molded ABS Matrix with 3-Ply Automotive Paint
Suspension System:
Independent Dual A-Arm Front with Adjustable Coil-Over Shocks
Braking Architecture:
4-Wheel Hydraulic Brakes (Front Discs & Rear Drums)
Parking Brake Matrix:
Smart Parkâ„¢ Automatic Electric Parking Brake
Steering Assembly:
Standard Electric Power Steering (EPS)
Transaxle Gear Ratio:
12.25:1 High-Torque Transaxle with Helical Gears
Windshield Grade:
DOT-Approved AS1 Safety Glass with Marine-Grade Wiper
Instrumentation Display:
7-Inch Color LCD Dash Display with Real-Time Diagnostics
Wheels & Tires:
Premium Custom-Painted Matching Wheels with Luxury Radial Tires
  • Industry-first standard electric power steering system for effortless low-speed maneuvering and tight turns
  • Integrated 7-inch LCD color dash display displaying real-time speed
  • battery diagnostics
  • and trip details
  • Fully integrated high-resolution rearview backup camera active automatically upon reverse gear selection
  • Premium hand-stitched custom LXR upholstery lowering seat surface temperatures up to 30 degrees in direct sunlight
  • Advanced Smart Park electric parking brake system engaging automatically whenever the vehicle comes to a complete stop
  • DOT-approved AS1 safety glass windshield equipped with a dedicated marine-grade wiper assembly
  • High-performance LED lighting package containing high/low beam headlights
  • daytime running lights
  • and turn signals
  • Dual back-lit side-view mirrors embedded with integrated LED turn signal repeaters for added street safety
  • Three-point NHTSA-approved seatbelts protecting all forward-facing and rear-facing passengers during travel
  • Automotive-style dual control levers mounted on a locking steering column for intuitive accessory command
  • Built-in 12-volt accessory power circuit supported by a high-capacity 60-amp DC-to-DC converter
  • High-mount third brake light integrated directly into the canopy structure to increase trailing visibility
  • Multi-port USB charging hubs situated cleanly within the dash layout to power personal electronic devices
  • Dual locking glove boxes providing secure on-board storage for personal items and electronics
  • Rear seat assemblies on 4 and 6-passenger builds featuring a fold-down utility flatbed design
Drivetrain Efficiency:
High-Output 17 Horsepower Peak AC Drive Technology Ideal for Demanding Commercial or Hilly Terrains
Smart Power Safeguards:
Exclusive Limp-Home Software Protocols Activating Automatically to Prevent Stranded Battery Situations
Battery Flexibility:
Compatible with Traditional Lead-Acid Packs or Zero-Maintenance EVOLVE Lithium-Ion Batteries
On-Board Charging Tech:
Compact 1050W Smart Charger Plugging Directly into Any Standard 110V-120V Household Grounded Outlet
Torque Curve Control:
Advanced 450-Amp Sevcon AC Controller Delivering Smooth Stepless Linear Acceleration Dynamics
Telematics Monitoring:
Tomberlin 360 Onboard System Facilitating Remote Voltage Monitoring and Real-Time Geofence Alerts
Regenerative Braking Matrix:
Automotive Style Braking Regulating Motor Speeds Downhill and Feeding Power Back to the Pack
Ignition Security Structure:
Unique Personal Key Configurations Restricting Unauthorized Operation and Safeguarding Fleets
