E-Z-GO VALOR

The E-Z-GO Valor is built for drivers who want a dependable golf car with clean styling, smooth ride quality, and everyday versatility. Whether you are cruising the neighborhood, using it around a property, or enjoying recreational driving, the Valor is designed to be approachable, practical, and easy to live with.

Available with either a 48-volt electric system or EX1 gas engine depending on configuration, the Valor also adds independent front suspension, automotive-style pedals, and IntelliBrake technology with automatic parking brake on electric models.

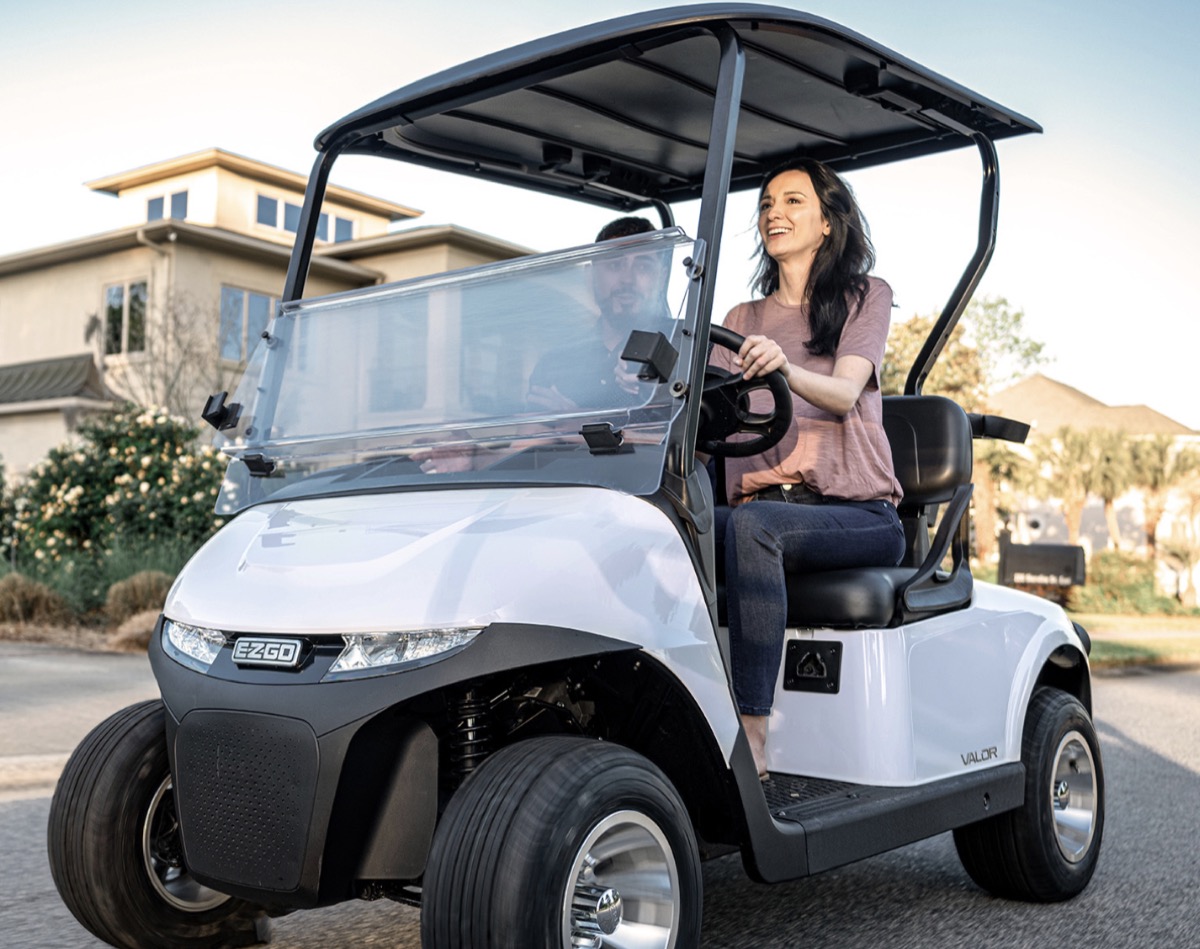

Click main image to enlarge and browse the gallery.

E-Z-GO Valor Electric

Overall Length

94.5 in (240 cm)

Overall Width

47.0 in (119 cm)

Overall Height (Without Roof)

47.5 in (121 cm)

Overall Height (With Roof)

70 in (178 cm)

Wheel Base

65.7 in (167 cm)

Front Wheel Track

35.5 in (90 cm)

Rear Wheel Track

38 in (97 cm)

Ground Clearance @ Differential

4.5 in (11 cm)

Motor Type

AC induction

Horsepower

4.4 hp (3.3 kW) continuous

Electrical System

48 VDC brushless DC

Batteries

Four 12-volt lead acid deep cycle batteries

Battery Charger

48 VDC QE, 120 VAC, UL & CSA

Speed Controller

250 amp solid state controller

Drivetrain

Direct-drive AC induction motor

Transaxle

Differential with helical gears

Gear Selection

Forward-neutral-reverse

Rear Axle Ratio

16.99:1

Seating Capacity

2 passenger

Dry Weight

669 lb (303 kg)

Curb Weight

969 lb (440 kg)

Vehicle Load Capacity

800 lb (363 kg)

Outside Clearance Circle

19.2 ft (5.8 m)

Speed (Level Ground)

19 mph ± 0.5 mph

Steering

Double ended rack and pinion

Front Suspension

Independent A-arm coil over shock

Rear Suspension

Mono-leaf springs with hydraulic shocks

Service Brake

Induction motor plus rear wheel mechanical self-adjusting drum

Parking Brake

Automatic electro-magnetic

Frame

Welded steel with powder-coat protection

Body & Finish

Injection molded TPO

E-Z-GO Valor Gas

Overall Length

94.5 in (240 cm)

Overall Width

47.0 in (119 cm)

Overall Height (Without Roof)

46.7 in (119 cm)

Overall Height (With Roof)

69.5 in (177 cm)

Wheel Base

65.7 in (167 cm)

Front Wheel Track

35.5 in (90 cm)

Rear Wheel Track

38 in (97 cm)

Ground Clearance @ Differential

4.0 in (10 cm)

Engine

Single cylinder OHV, 4 cycle, 9.15 cu in (150 cc)

Fuel System

Closed-loop electronic fuel injection

Horsepower

11.5 hp (8.6 kW) J1995 standard

Electrical System

Internal starter generator

Battery

One 12-volt maintenance free

Air Cleaner

Industrial-rated dry filter

Lubrication

Pressurized oil system

Oil Filter

Removable oil screen

Cooling System

Air cooled

Fuel Capacity

5.82 gallon (22.3 L) tank

Drivetrain

Continuously variable transmission (CVT)
