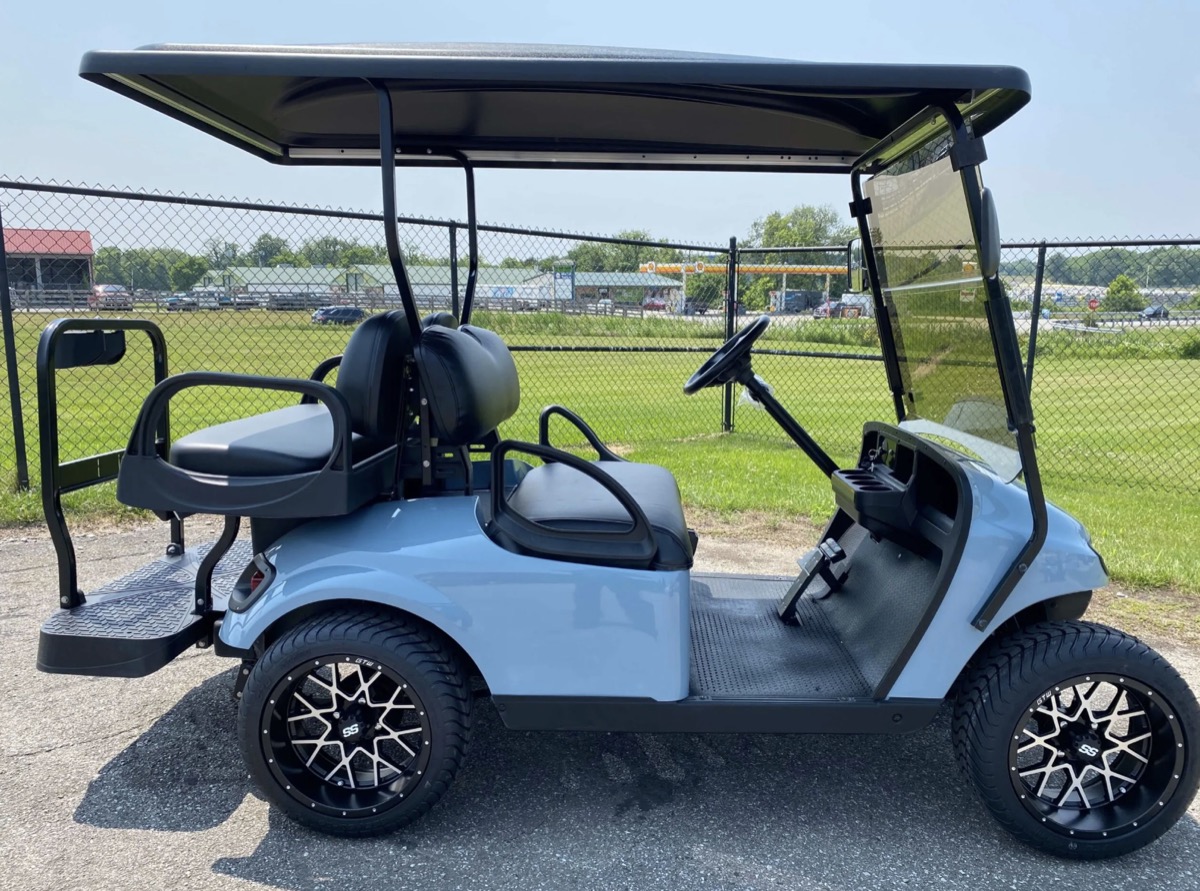

E-Z-GO TXT

The E-Z-GO TXT golf car combines proven reliability with the latest innovations to deliver a consistently smooth ride and greater energy efficiency. Featuring a 48-volt electric drivetrain or gas configuration depending on setup, it offers a practical balance of performance and value for course, fleet, and everyday use.

The TXT platform has long been a popular choice because of its simple, dependable layout, easy serviceability, and comfortable ride. It remains a strong fit for golf operations, community transportation, and practical day-to-day driving.

Click main image to enlarge and browse the gallery.

E-Z-GO TXT Electric

Frame

Welded steel with powder coating

Front Body & Finish

Injection molded TPO

Rear Body & Finish

Injection molded TPO

Standard Color

Ivory or Forest Green

Overall Length

93.0 in (236 cm)

Overall Width

47.0 in (119 cm)

Overall Height (No Canopy)

46.5 in (118 cm) top of steering wheel

Overall Height (With Canopy)

67.5 in (171 cm) top of sun canopy

Wheel Base

66.0 in (168 cm)

Front Wheel Track

34.0 in (86 cm)

Rear Wheel Track

38.5 in (97 cm)

Ground Clearance @ Differential

4.5 in (11 cm)

Power Source

48-volt DC

Motor Type

Shunt wound

Horsepower

3.0 hp (2.2 kW) continuous

Electric System

48-volt

Batteries

Six, 8-volt deep cycle

Battery Charger

48 VDC PowerWise QE, 120 VAC, UL & CSA

Speed Controller

250-amp solid-state controller

Drive Train

Motor shaft direct drive

Transaxle

Differential with helical gears

Gear Selection

Dash-mounted forward-neutral-reverse

Rear Axle Ratio

12.44:1

Warranty

Standard 20,000 amp/hr, Platinum 21,500 amp/hr optional, Diamond 25,000 amp/hr optional

TruCourse Programmable Modes

Coastal, Mild hill, Steep hill

Seating Capacity

2-person

Dry Weight (Without Batteries)

557 lb (253 kg)

Curb Weight

935 lb (424 kg)

Vehicle Load Capacity

800 lb (363 kg)

Outside Clearance Circle

19.0 ft (5.8 m)

Speed (Level Ground)

10.2-14.8 mph (16.4-23.8 kph)

Towing Capacity

3.7 cu ft cargo or approved permanent tow bar application

Steering

Self-compensating rack and pinion

Front Suspension

Leaf springs with hydraulic shock absorbers

Rear Suspension

Leaf springs

Service Brake

Rear wheel mechanical self-adjusting drum

Parking Brake

Self-compensating single point engagement

Front Tires

18 x 8.50-8 (4-ply rated)

Rear Tires

18 x 8.50-8 (4-ply rated)

E-Z-GO TXT Gas

Frame

Welded steel with powder coating

Front Body & Finish

Injection molded TPO

Rear Body & Finish

Injection molded TPO

Standard Color

Ivory or Forest Green

Overall Length

93.0 in (236 cm)

Overall Width

47.0 in (119 cm)

Overall Height (No Canopy)

46.5 in (118 cm) top of steering wheel

Overall Height (With Canopy)

67.5 in (171 cm) top of sun canopy

Wheel Base

66.0 in (168 cm)

Front Wheel Track

34.0 in (86 cm)

Rear Wheel Track

38.5 in (97 cm)

Ground Clearance @ Differential

4.25 in (10.8 cm)

Power Source

4-cycle 24.5 cu in (401 cc) low-emissions engine

Valve Train

Single-cylinder OHV with hemispheric combustion chamber

Horsepower

13.5 hp (10.1 kW), exceeds SAE J1940 standard

Electric System

Starter / generator, solid-state regulator

Battery

One 12 volt maintenance free

Key or Pedal Start

Pedal

Air Cleaner

Industrial-rated dry filter

Lubrication

Pressurized oil system

Fuel Capacity

5.3 gallon (20.0 L) tank

Drive Train

Continuously variable transmission (CVT)

Transaxle

Differential with helical gears

Gear Selection

Forward-reverse

Rear Axle Ratio

11.47:1 (forward), 15.78:1 (reverse)

Oil Filter

Spin on

Cooling System

Air cooled

Seating Capacity

2-person

Dry Weight

760 lb (344 kg)

Curb Weight

780 lb (354 kg)

Vehicle Load Capacity

800 lb (363 kg)

Outside Clearance Circle

19.0 ft (5.8 m)

Speed (Level Ground)

13 mph +/- 0.5 mph (21 kph +/- 0.8 kph)

Towing Capacity

3.7 cu ft cargo (if cars with approved permanent tow bar)

Steering

Self-compensating rack and pinion

Front Suspension

Leaf springs with hydraulic shock absorbers

Rear Suspension

Leaf springs with hydraulic shock absorbers

Service Brake

Rear wheel mechanical self-adjusting drum

Parking Brake

Self-compensating single point engagement

Front Tires

18 x 8.50-8 (4-ply rated)

Rear Tires

18 x 8.50-8 (4-ply rated)
