MADJAX XSERIES X6

The MadJax XSeries X6 is a premium six-passenger lithium vehicle built for larger families, group outings, neighborhood cruising, and upscale recreational use. With three rows of seating, modern styling, and a feature-rich cabin, the X6 is designed to combine comfort, technology, and standout curb appeal.

MadJax equips the X6 with a 48-volt lithium system, 5kW brushless AC motor, 400-amp Reliance controller, hydraulic disc brakes, onboard charging, and independent front suspension. Premium features include a large interactive display, rear backup camera, wireless phone chargers, USB ports, weatherproof speakers, and multi-color lighting.

Click main image to enlarge and browse the gallery.

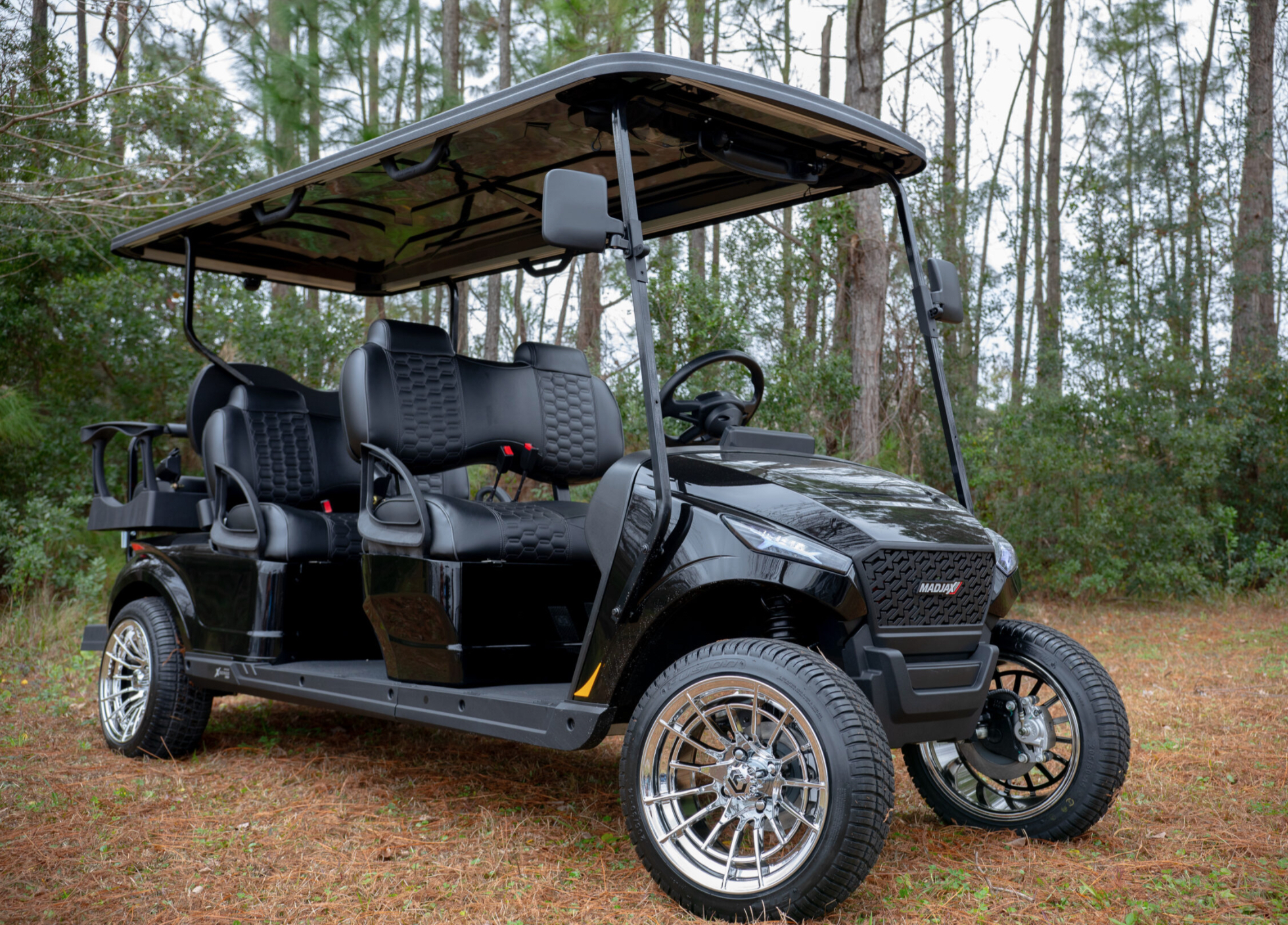

MadJax XSeries X6
Power
48-Volt Lithium
Motor Type
AC Motor
Horsepower
6.7 hp (5 kW) continuous
Wiring
3 gauge cables throughout
DC Converter
30 amp DC voltage reducer for 12 volt power
Battery Options
Eco Battery lithium, 105Ah or 160Ah
Start Type
Pedal
Battery Charger
Eco Battery onboard charger with 3.0 m AC cord
Speed Controller
400-amp Reliance solid-state AC controller
Top Speed
19.8 mph
Drivetrain
Motor shaft direct drive
Transaxle
Open differential with helical gears
Gear Selection
Forward-neutral-reverse rotary style switch
Rear Axle Ratio
12.3:1
MadJax XSeries X6
Overall Length
Lifted 115 in (292 cm), non-lifted 112 in (284.5 cm)
Overall Width
Lifted 51.9 in (131.8 cm), non-lifted 48.3 in (122.6 cm)
Front Wheel Track
Lifted 38.2 in (97.2 cm), non-lifted 37.9 in (96.4 cm)
Rear Wheel Track
41.1 in (104.5 cm)
Wheel Base
Lifted 67.7 in (172 cm), non-lifted 66.2 in (168.3 cm)
Ground Clearance @ Differential
Lifted 6.7 in (17.2 cm), non-lifted 5.5 in (14 cm)
Outside Clearance Circle
26.2 ft (8 m)
Frame
Welded steel with hot dipped galvanized protection
Body & Finish
Injection molded polypropylene
Steering
Double-ended rack and pinion
Front Suspension
MacPherson strut
Rear Suspension
Mono-leaf springs with hydraulic shocks
Service Brake
Front and rear hydraulic disc brake
Parking Brake
Electromagnetic park brake
Dry Weight
1092 lb (495.5 kg), estimated, without battery
Curb Weight
1199 lb (544 kg), estimated
Vehicle Load Capacity
750 lb (340 kg), estimated
MadJax XSeries X6 Highlights
Passenger Capacity
Three rows of premium seating for up to 6 passengers
Display
10-inch interactive display
Camera
Rear backup camera
Charging
Onboard charger
Lighting
LUX color-changing headlights and multi-color LED lighting
Convenience Features
Wireless phone chargers, dual USB ports, front and rear cupholders, overhead storage
Audio
4 inch weatherproof speakers
Safety and Visibility
Side and center mirrors, sequential rear turn signals, automatic parking brake
Best Use
Neighborhood cruising, family outings, resort use, premium multi-passenger transportation

Need Pricing or Availability?

Contact North Shore Golf Car for current inventory, powertrain options, and availability on the Cushman Shuttle 6.
